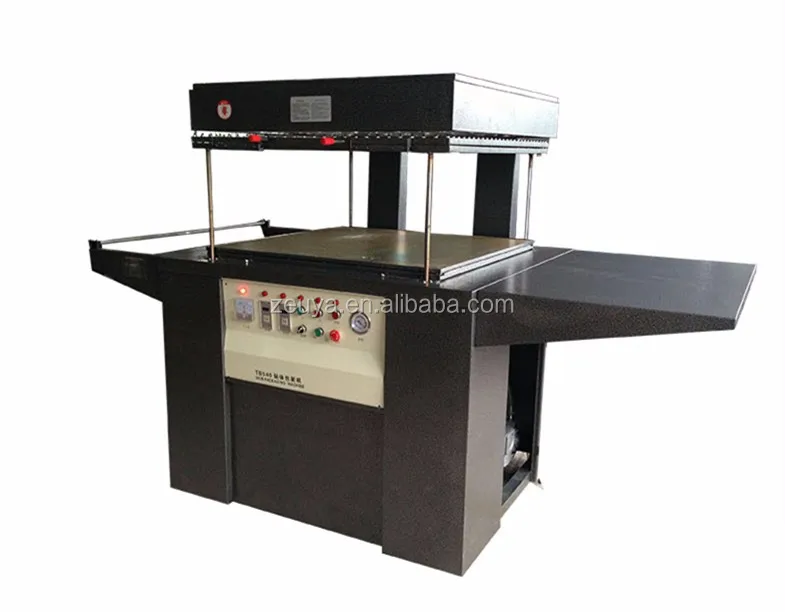

Skin Packing Machine TB-980

FOB Reference Price:Get Latest Price
$3,150.00 - $3,200.00 / Unit | 1 Unit/Units (Min. Order)
Power:
34KW
Model Number:
TB-980
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Type:
Vacuum Packing Machine
Condition:
New
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
Place of Origin:
Guangdong, China
Brand Name:
ZEUYA
Voltage:
220V/380V
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Weight:
400KG
Automatic Grade:
Semi-Automatic
Certification:
CE ISO9001
Driven Type:
Electric
Dimension(L*W*H):
1250*2365*1440MM
Machine Type:
Skin Packing Machine
Manufacturer:
Yes
OEM:
Accept
Brand:
ZEUYA
Model:
TB-980
Function:
Skin Packing
Operation Way:
Automatic
ODM:
Accept
Cetificate:
CE Approved
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Strong Wooden Case
Port
Shenzhen/Guangzhou
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 2 To be negotiated
Machine Details

Machine Description:

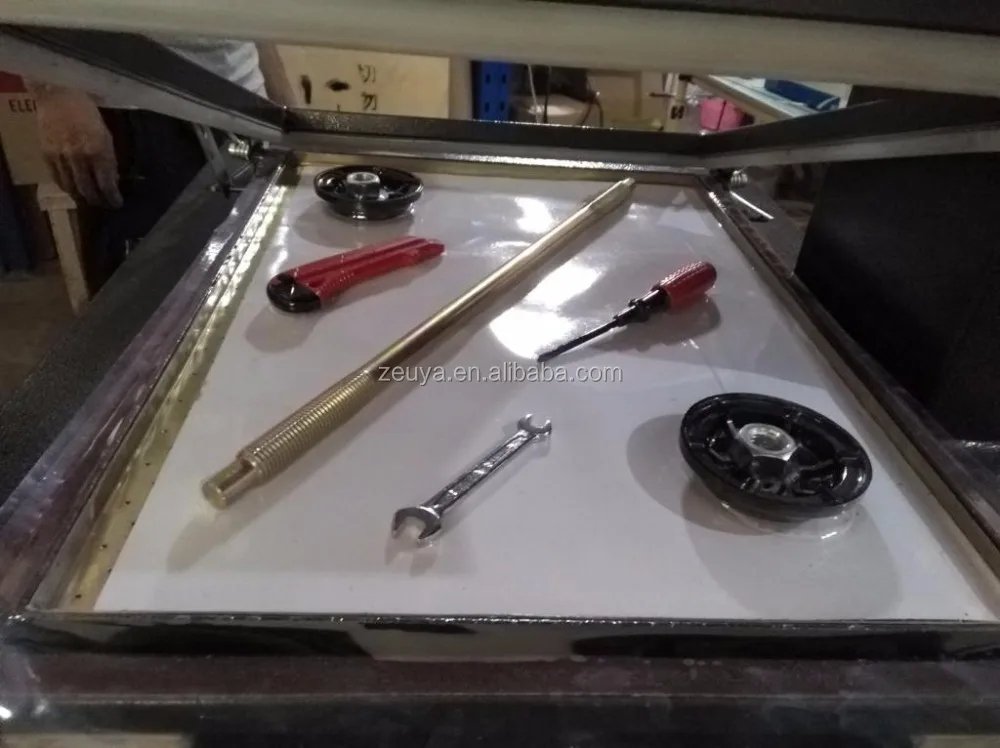

Vacuum skin packaging machine for hardware parts is one of the most economical vacuum skin packaging machines, its working principle is making product between the transparent body and chassis under the vacuum state.The vacuum skin packaging machine adapt steel spray material,control circuit board,could complete heating and vacuum pumping and sealing action automatically in one time without pattern die.Perfect packaging effect,higher packing efficiency and stable performance.



Main Features:
1. The introduction of advanced vacuum technology, high-quality silent type vacuum pump, suction is strong, and has been the installation of over voltage protection, long pump life, high efficiency, low failure rate, especially for circuit boards and other bubble-cloth vacuum packaging.

2. Suitable for small batch production line and medium volume production.

3. New high efficiency heating system, using new heating tube, infrared radiation, heating up fast, uniform heating, Japanese imports of tungsten and molybdenum alloy, high temperature oxidation, sintering, the installation of temperature control system that can be customized instantaneous thermal heating system.


4. Feeding way: forward in and right out.


5. The cutter is equipped with hot-box and protective cover, safe, hot box automatically moves Thermostat, special permutations and combinations of far-infrared heating pipe, heating quickly and evenly.


6. Used Japan and Germany imported parts, stable and reliable performance, the packaging area is bigger, high packing efficiency, low loss, coupled with pipeline operations, reduce costs and improve efficiency.

Machine Model
TB-980
Machine Voltage
AC220V/AC110V
Machine Power
34KW
Max Packing Size
980*980MM
Packing Speed
100-120pcs Hours
Packing Material
skin packaging film
Film Holder Width
1050MM
Machine Dimension
1250*2365*1440MM
Machine Net Weight
400KG
Application

Vacuum skin packaging machine are widely used in hardware,various types of locks tools,stationery,tableware,toys,auto parts and all kinds small commodities.

Packing & Delivery

Packing:

Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.

The price show on our website just the machine EXW price, please contact us before you place order.
